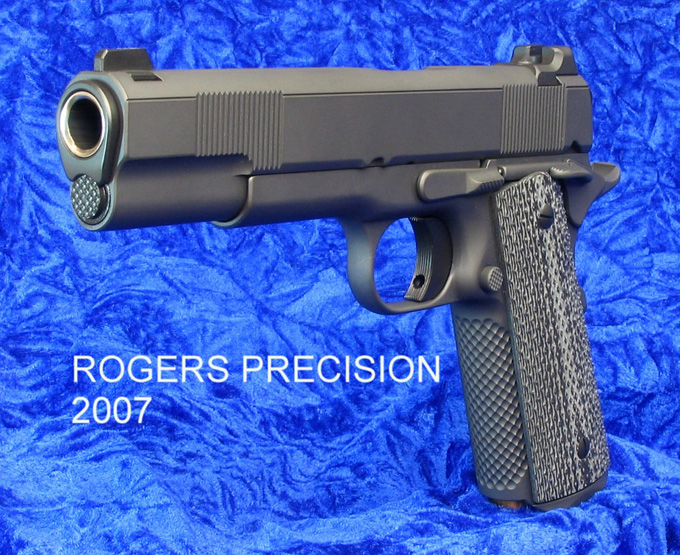

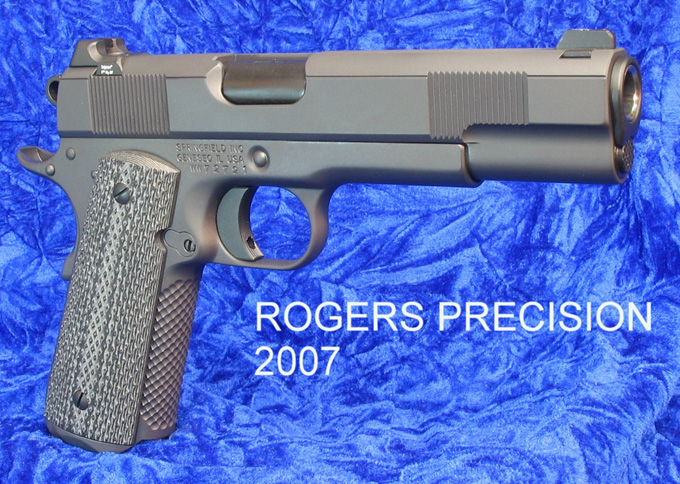

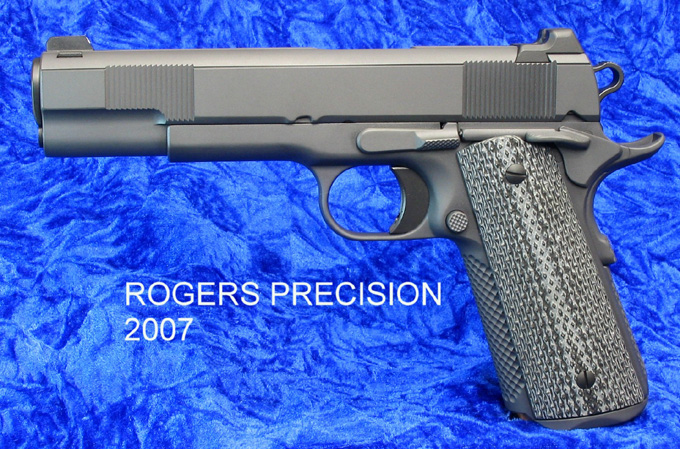

Tier One 'G' Model



Match grade slide to frame fit.
Kart match barrel.
Wilson barrel link.

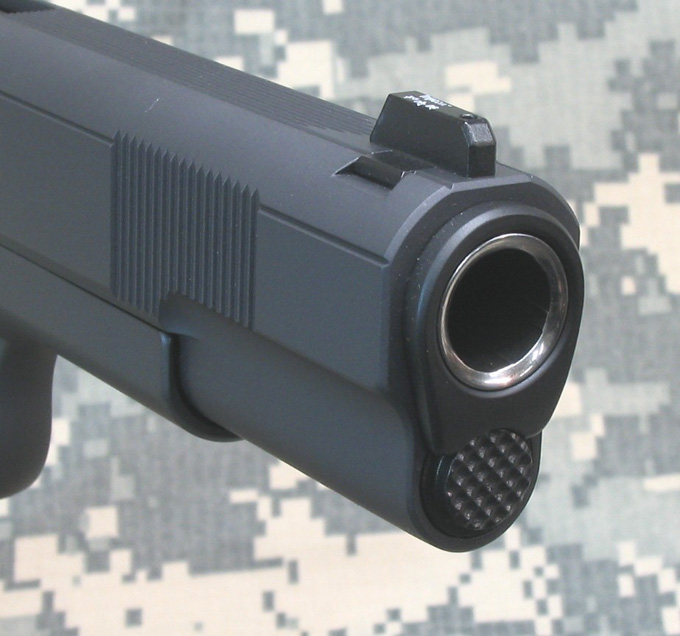

Barrel cut flush with bushing and precision crowned.
Custom contoured match grade barrel bushing.
Golfball textured recoil spring plug.

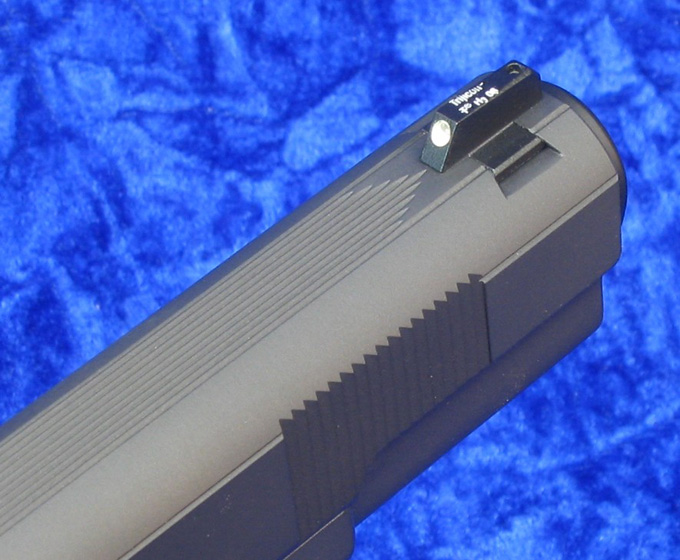

Rogers' cross dovetailed front sight with Trijicon tritium lamp, green with white outline

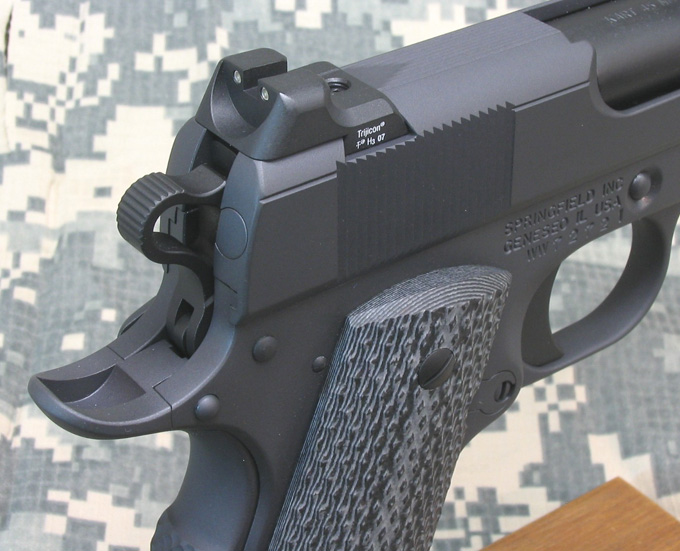

Rogers' 'Tier One' rear sight. Two Trijicon tritium lamps, yellow with no white outlines.

'Ball' cuts.
Surface grind sides of slide to remove all lettering.
Remachine rear cocking serrations.
Forward cocking serrations.
Flatten and serrate top of slide. Double arrowhead pattern.
French cuts.
Lower, flare, forward cut ejection port.
60 degree bevel on bottom of slide.
Custom fabricated extended ejector.
2 tuned Wilson extractors.
Oversized firing pin stop.
Brown's steel firing pin.
Brown's 'hardcore' slide stop. Custom contoured, shortened and golfballed.
Chamfer slide stop hole on RH side of frame.
Wilson #337 hammer.
Wilson match sear.
Colt disconnector.
Greider medium length trigger. Internally lightened.
Trigger job 3 3/4 lbs.
Nowlin extended magazine catch. Shortened and golfballed.
Brown's thumb safety. Custom contoured.
Nowlin plunger tube.
Slide stop and thumb safety plungers heat treated for no wear.
S&A grip safety. Welded, custom contoured and golfballed.

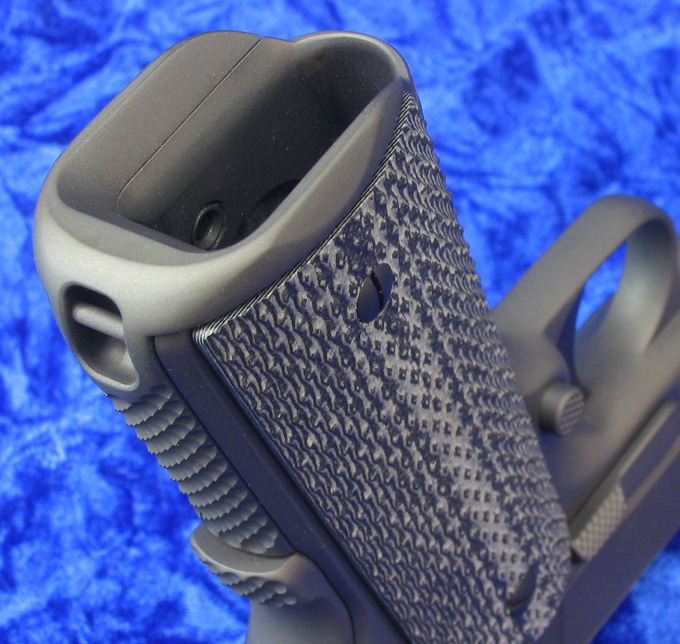

S&A mag well. Welded, custom contoured, golfballed and blended.
Recessed lanyard loop.
High cut and golfball frontstrap.
Davidson G10 Warthog grips. Internally lightened.
King's narrow slot grip screws.
King's grip screw bushings.
Carry bevel package, deluxe.
Gun-kote(matte grey) and Cera-kote(graphite black) over a base of manganese phosphate.
Wolff springs throughout.
(A sharp eye might notice the slide seated a bit 'proud' of the frame. The pistol was assembled without lubrication for photography purposes. Some FP-10 and a dozen hand cycles later and the rear of the slide is now flush with the frame.)
